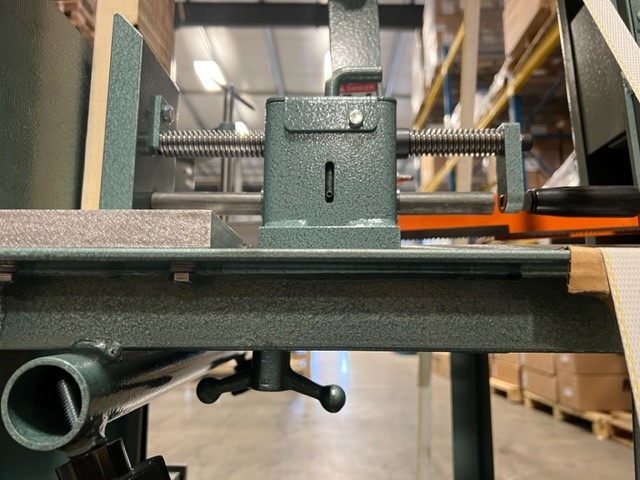

Sorry, we do not have a detailed drawing but if you see the attached photo you can see the Tri-knob under the vise that tightens it to the saw. A threaded stud protruding from the bottom of the vise extends down through the frame and allows side-to-side adjustments when loosened.
